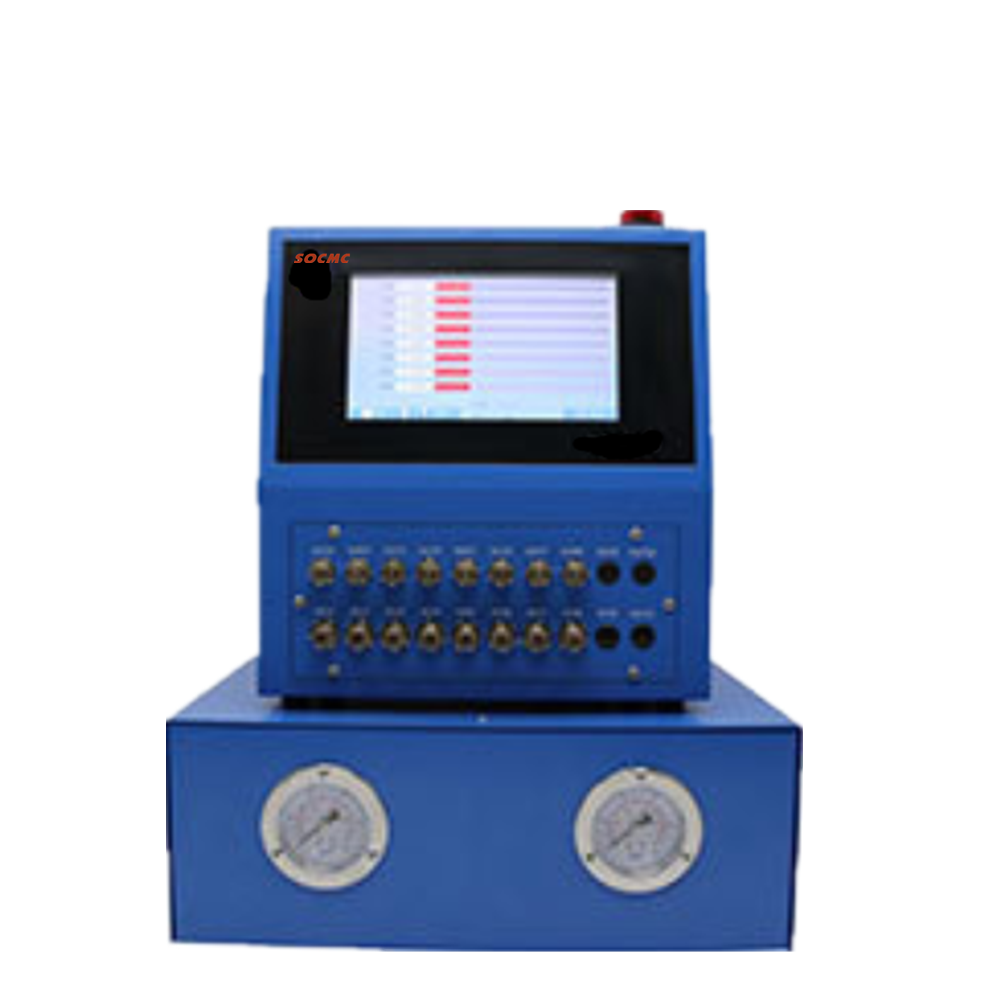

电子量仪MDG-4A

产品参数 Details在线订购

一、概述summary

1、多通道气电量仪采用了嵌入式单片机技术而设计的数字模块化应用产品。对模拟信号量进行数据采集并进行数字处理,可直接显示被测尺寸的绝对测量值或相对于名义尺寸值的变化量即相对测量值。根据预先设定的工件尺寸公差界限,指示出被测工件合格与否。

The multi-channel gas electricity meter is a digital modular application product designed with embedded single-chip microcomputer technology. The data acquisition and digital processing of analog signals can directly display the absolute measurement value of the measured size or the change relative to the nominal size value, that is, the relative measurement value. According to the preset tolerance limit of workpiece size, it indicates whether the workpiece is qualified or not.

2、本产品采用了高亮度的触摸显示屏,特别适合各种生产线环境的使用,制作的中文菜单操作界面,大大方便了操作和人机交互。同时本产品可以进行多种规格被测参数的多程序设置(默认可保存10个方案,可定制),具有测量数据的保存、查询、实时通讯及SPC图形绘制功能。

This product adopts high brightness touch screen, which is especially suitable for various production line environments. The Chinese menu operation interface is made, which greatly facilitates the operation and human-computer interaction. At the same time, the product can be used for multi program setting of measured parameters of various specifications (10 schemes can be saved by default, and can be customized). It has the functions of saving, querying, real-time communication and drawing SPC graphics.

3、本产品可根据用户需求,修改和补充产品的功能,以满足不同检测内容的需求。

The product can modify and supplement the functions of the product according to the user's needs to meet the needs of different detection contents.

二、产品特点Product features

1、高亮度触摸显示屏。清晰、无显示视角和光线要求。

High brightness touch screen. Clear, no display angle and light requirements.

2、中文菜单操作。直观、方便、快捷。

Chinese menu operation. It is intuitive, convenient and fast.

3、高集成化,无外接按键,操作及显示集成在触摸屏上。

High integration, no external button, operation and display integrated on the touch screen.

4、数字精确读数,最高分辨率可达0.1um,处于国内领先地位。

Digital accurate reading, the highest resolution of 0.1 um, in the domestic leading position.

5、可配置任意大小的气测头。

Any size of gas probe can be configured.

6、极高的稳定性,适应绝大部分生产加工场所。

High stability, suitable for most production and processing sites.

7、全量程无需调节倍率,校准方便快捷,最高分辨率0.1um。

There is no need to adjust the magnification in the full range. The calibration is convenient and fast, and the maximum resolution is 0.1um.

8、结实耐用:仪器整体密封性好,不怕油污和水汽。

Strong and durable: the instrument has good sealing performance and is not afraid of oil and water vapor.

三、规格型式Specification and type

示值范围Indication range

分辨率resolving powerum

初始间隙Initial clearance

10um

0.1

25-60(um)

20um

0.2

30-60(um)

50um

0.5

40-80(um)

100um

1.0

70-80(um)

注:对于初始间隙可达100um左右的大间隙型测量需定制量仪

Note: for the large gap measurement with the initial clearance of about 100um, it is necessary to customize the measuring instrument

四、主要基本性能Main basic performance

示值范围Indication rangeum

±5

±10

±25

±50

数显分辨率digital resolutionum

0.1

0.2

0.5

1.0

示值总误差Total indication errorum

0.2

0.4

1.0

2.0

示值变动性Indication variabilityum

0.1

0.2

0.5

1.0

外形尺寸Dimensions

260mm×201mm×290mm

重量weight

12.5kg

 五、使用条件Conditions of use

1、电源:DC12v 2-3A

Power supply: DC12V 2-3a

2、环境温度:0-45

Ambient temperature: 0-45

3、湿度:85%以下

Humidity: below 85%

4、气源:0.4-0.8Mpa的稳定且洁净气源

Gas source: stable and clean gas source of 0.4-0.8mpa

5、远离腐蚀性强的物品及磁场、电场及强震动等场合

Keep away from corrosive objects, magnetic field, electric field and strong vibration

六、产品功能Product function

1、中文菜单多量程

Chinese menu multi range

2、高精度和高稳定性。最高分辨率可达0.1um,开机无需预热。

High precision and high stability. The highest resolution is up to 0.1 um, no preheating is needed.

3、实时显示检测尺寸

Real time display of detection size

4、中文菜单操作,显示丰富、直观、操作简单。

Chinese menu operation, rich display, intuitive, simple operation.

5、可配从Φ0.3mm至3.0mm的任意形状的喷嘴孔气测头。

It can be equipped with any shape nozzle hole gas probe from Φ0.3mmto3.0mm.

6、可储存327680个测量数据,掉电不丢失并可查询。

It can store 327680 measurement data without losing power and can be inquired.

7、可设置十套参数,进行多种规格测量(可定制多套)。

Ten sets of parameters can be set to measure various specifications (multiple sets can be customized).

8、输入输出:光耦隔离IO输入输出接口。

Input and output: optocoupler isolation IO input and output interface.

9、具有手动和自动保存数据的功能,操作更方便。

With the function of manual and automatic data saving, the operation is more convenient.

10、带指定通道求平均运算,及spc图形查询。

Average operation with specified channel and SPC graphic query.

11、具有RS485通讯功能。

It has RS485 communication function.

12、可自定义方案名称,可输入中文,方案调用储存更直观。

The scheme name can be customized and Chinese can be input. The scheme can be called and stored more intuitively.

13、可定制特殊功能,如峰值运算,分组选配、数据上传、U盘存储带时间、无线传输。

Special functions can be customized, such as peak calculation, packet selection, data upload, U disk storage time, wireless transmission.

14、检测带可控声光报警。

Detection with controllable sound and light alarm.

15、可定制±100um、±150um大量程型。

It can be customized with large range of ± 100um and ± 150um.

七、界面Interface:
